M0、M1、M2-Solar Panel Walk Rack

Author： AB Time：2025-06-06 17:49:08 Read：541

TAILAI solar panel maintenance walk rack is designed for PV module installation, operation and maintenance (including repair, cleaning, installation of drainage clips)

The main body is a horizontal ladder-shaped aluminum bracket. The bracket can be installed in PV power stations and on PV modules at different inclination angles.

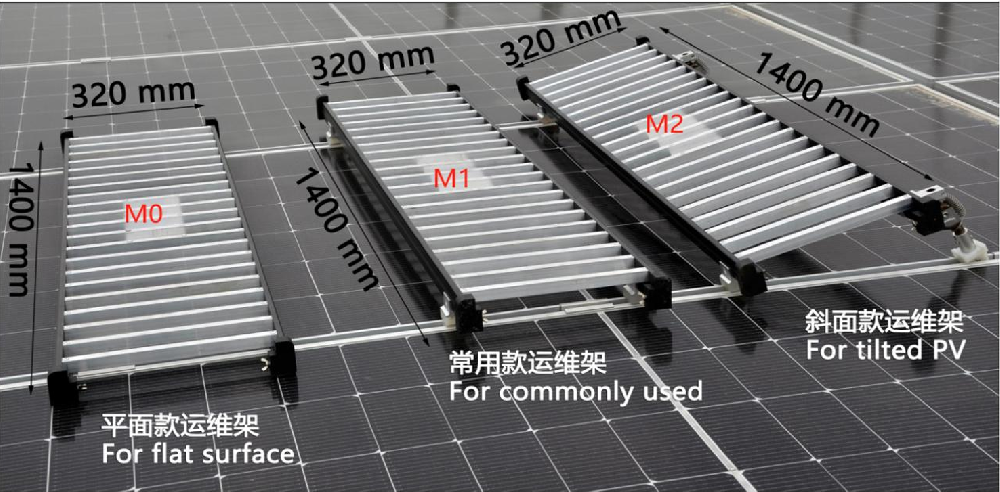

Currently, there are three types: Flat type (M0), Common type (M1), and Inclined type (M2). The flat type (M0) is placed directly on the PV panel. The common type (M1) is placed on the support bar between two panels (the width of the gap must be larger than 10 mm). Users can choose them according to their needs.

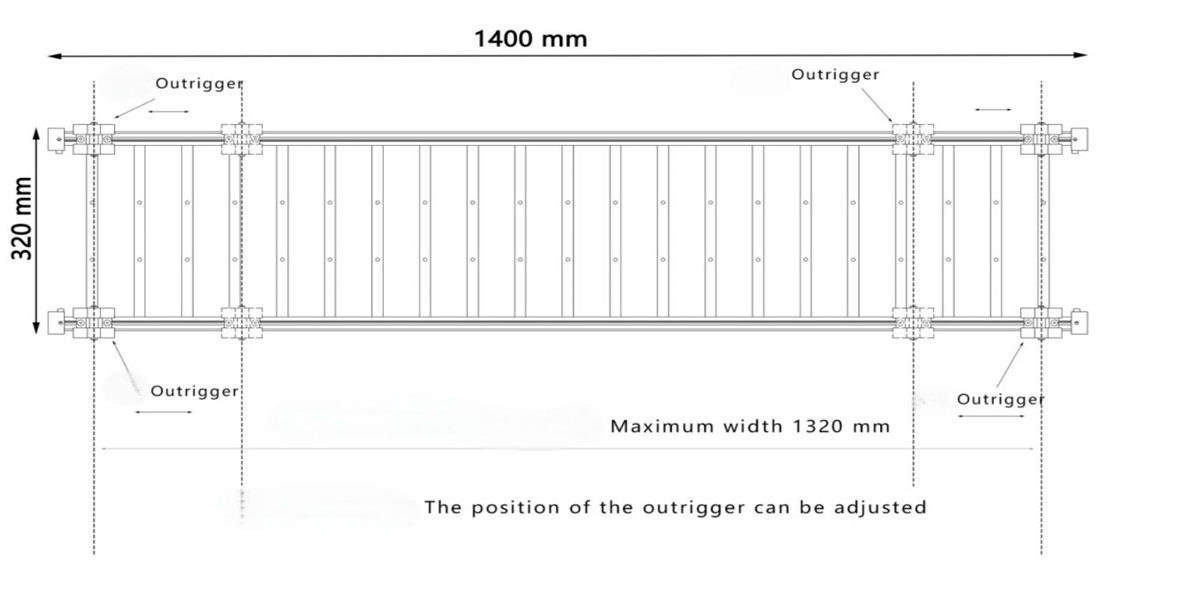

The outrigger is movable and suitable for photovoltaic panels with a maximum width of no more than 1.32M

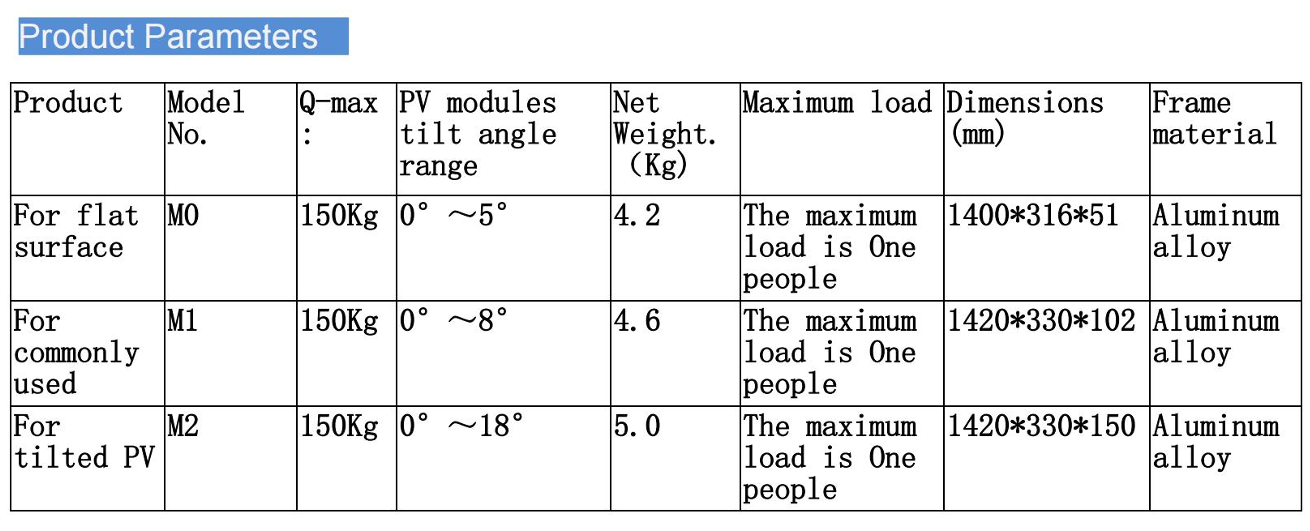

Made of high-quality Al alloy, ensuring without any damage when people step on it. And max weight load up to 150KG

Three types for options, M2 max walking tilt angle up to 18 degree

Video

                                                                                          👆 M0

                                                                                           👆 M1



                                                                                          👆 M2
